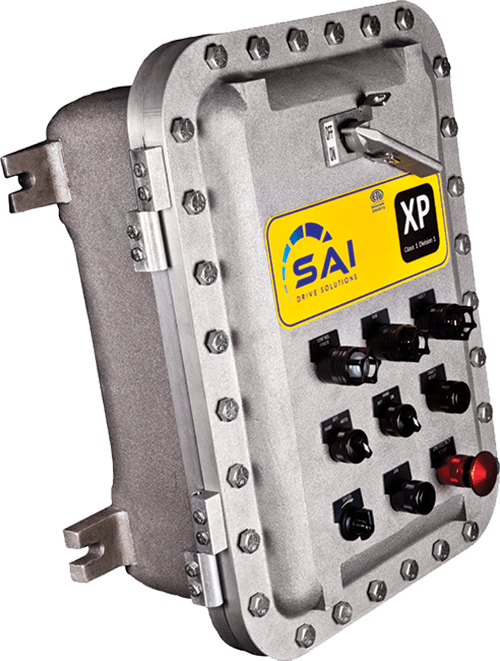

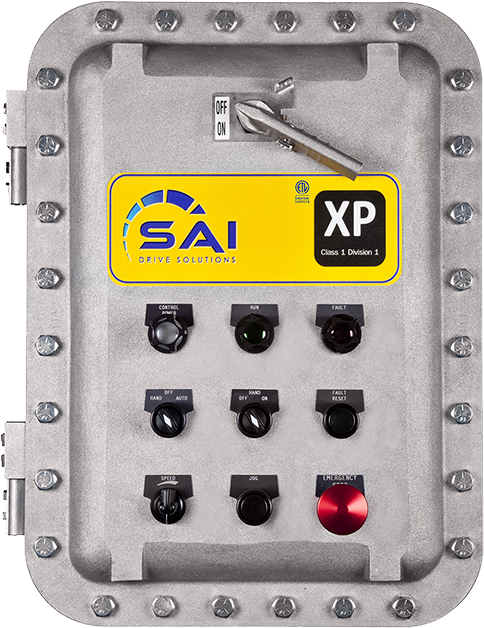

XP Drive: Explosion Proof Packaged VFD

Power range: 1/8 HP to 25 HP
Input voltage: 230V & 480V
Enclosure: Compact NEMA 7 / 4X enclosure
Cooling: Passively cooled, no purging, no AC
Temp rating: 40°C std w/ 50°C or 55°C options
Options: Powder coating, communications, configurable operators & pilots, digital display

XP Drive: ETL Listed, Class I & II Div 1

* Specifications vary based on model composition

XP VFD Solutions

Engineered solutions for hazardous location (hazloc) environments including explosion proof Class I Division 1, Class II Division 1 and Class I Division 2 VFDs and purged air panels.

XP Drive

- Explosion Proof VFD
- Power: 1/8 HP to 25 HP
- Voltage: 240V 1 & 3-Ph, 480 Vac 3-Ph
- Protection Rating: Type 7 / 4X
- HazLoc Rating: Class I & II, Division 1
- Certification: ETL-listed

X5 HazLo

- Hazardous Location VFD
- Power: 10 HP to 100 HP
- Voltage: 480V & 575 Vac 3-Ph
- Protection Rating: Type 4X / IP66
- HazLoc Rating: Class I, Division 2
- Certification: UL-listed

XP Purge VFD Control Panels

- HazLoc Purge VFD Panels
- Power: 100 HP to 650 HP
- Voltage: 480 & 575 Vac 3-Ph
- Protection Rating: Type 4 / 4X
- HazLoc Rating: CID1 / CID2
- Certification: UL-listing available

X5 HazLo: UL Listed, Class I Div 2 VFD

XP VFD Solutions

XP Drive

X5 HazLo

XP Purge VFD Control Panels
